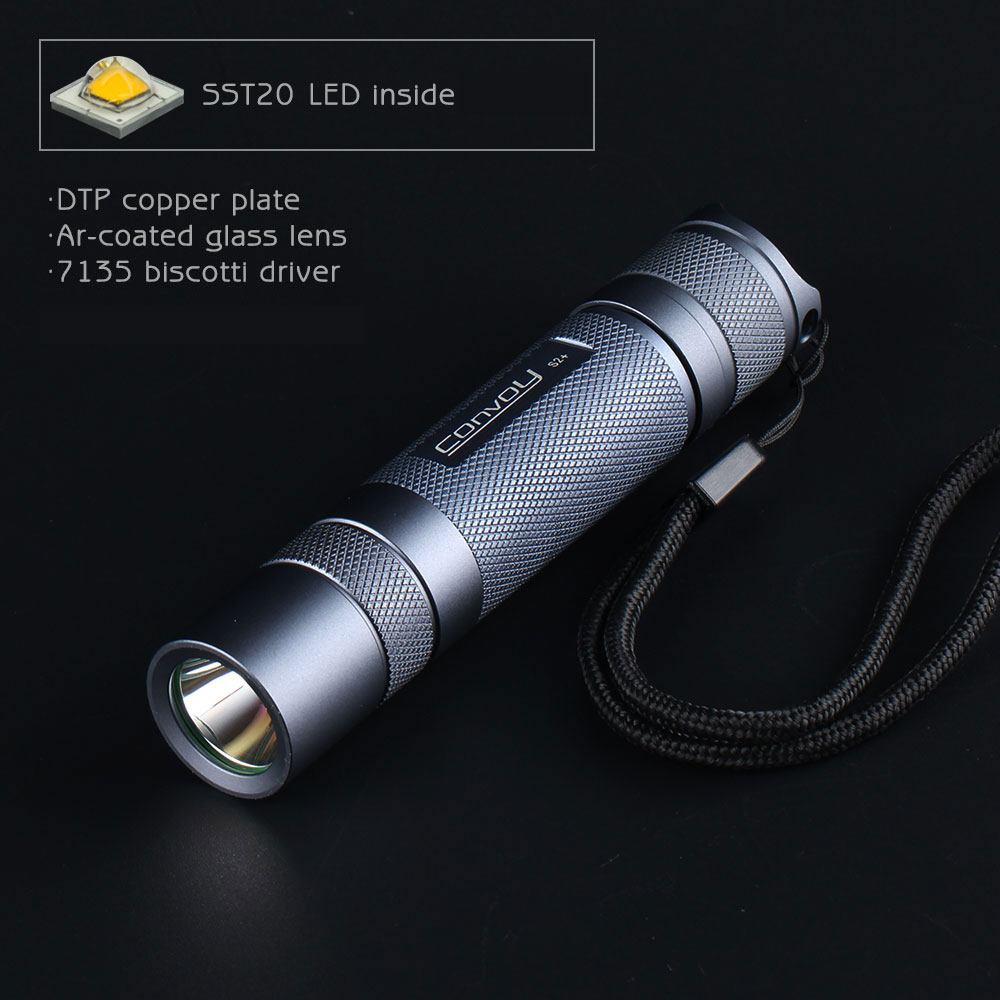

Convoy S2 with luminus SST20,DTP copper plate,ar-coated glass lens,7135 biscotti firmware,18650 flashlight ,Torch

PARAMETER

Material:  Aluminum Alloy

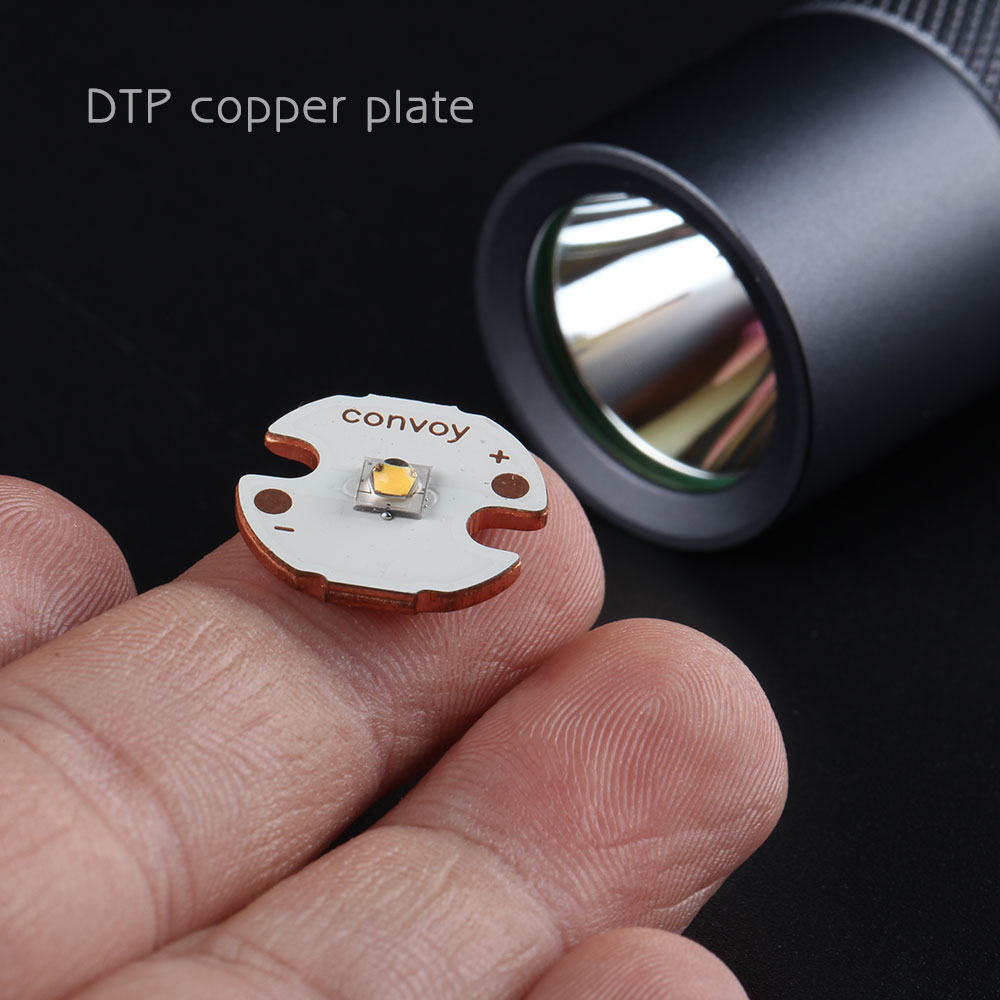

LED:luminus SST20 LED with DTP copper plate

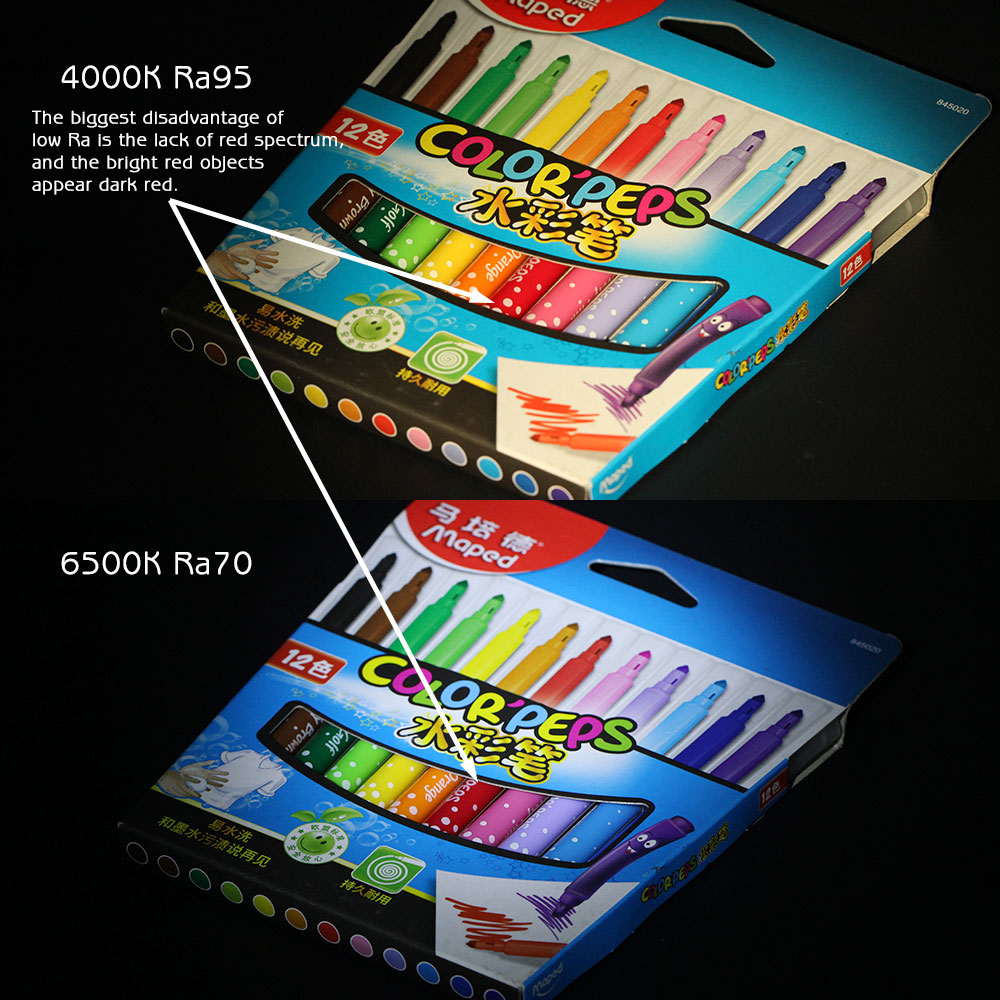

CRI:Ra(4000K/2700K)=95, Ra(6500K/5000K)=70

Driver: 7135 biscotti firmware

Low voltage warning:  Yes

Reverse polarity protection:  Yes

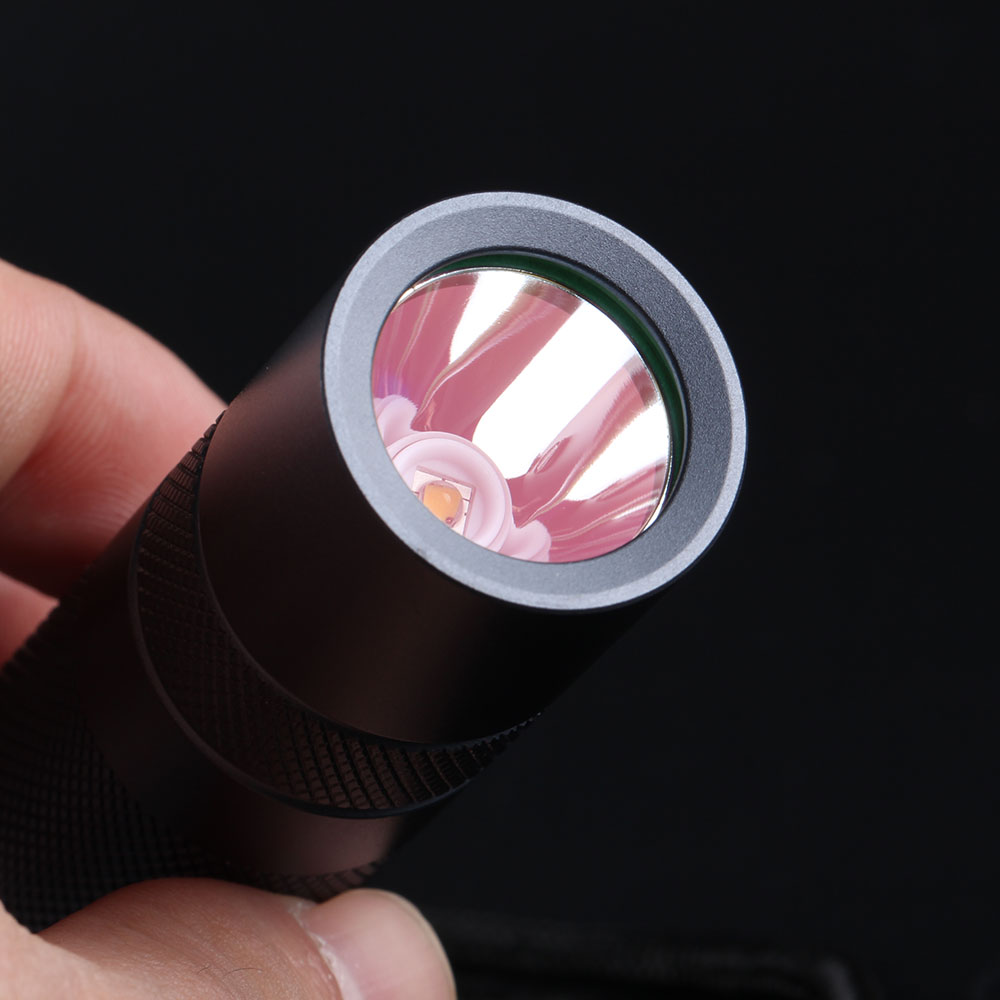

Lens type:  Ar-coated Glass

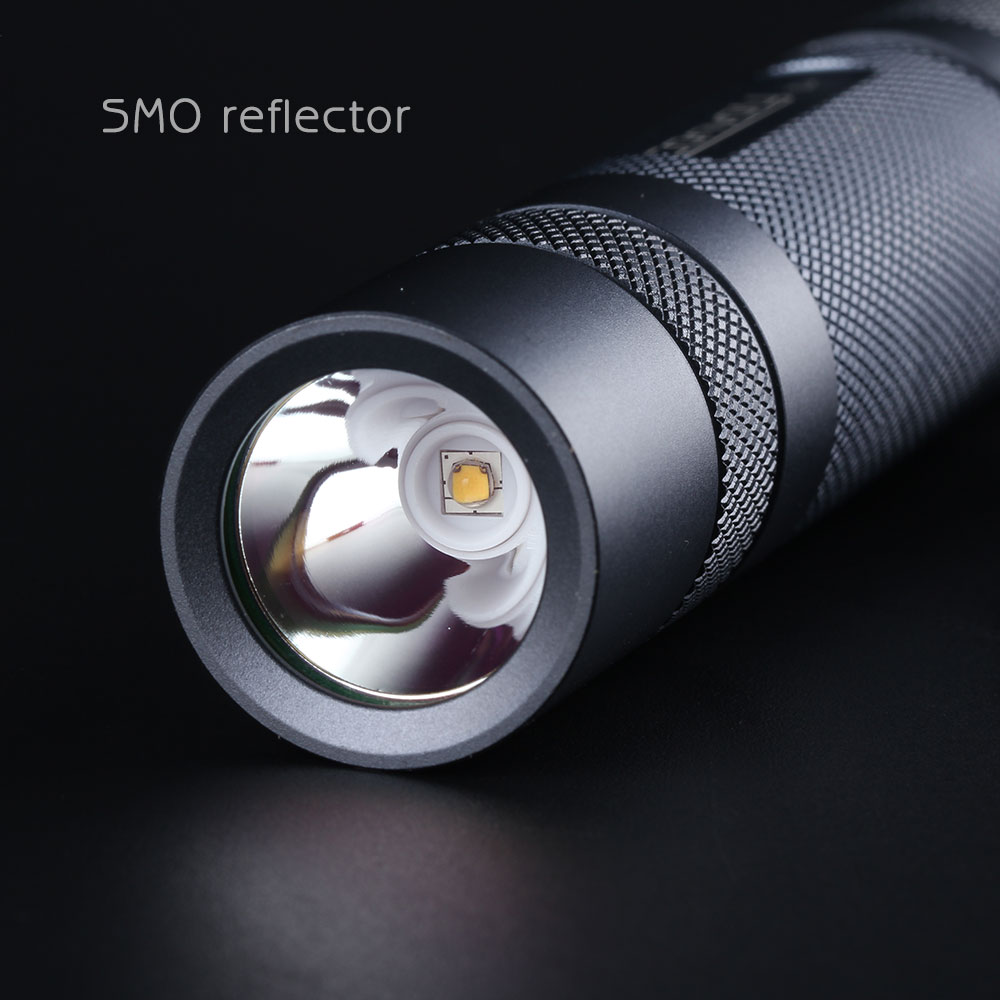

Reflector: Smooth

Mode memory: Yes

Tailstand:  Yes

Battery included:  No

Required battery type: unprotected 18650 lithium battery

Required battery quantity: 1pcs

Height:  118mm

Width:  24.1mm

Weight: 76g

Tc/Tint:

6500K: white color

5000K: a little warm/yellow, similar to the sunlight at noon

4000K: much more warm ,close to warm white ,similar to the light from car halogen headlights

2700K: warm white

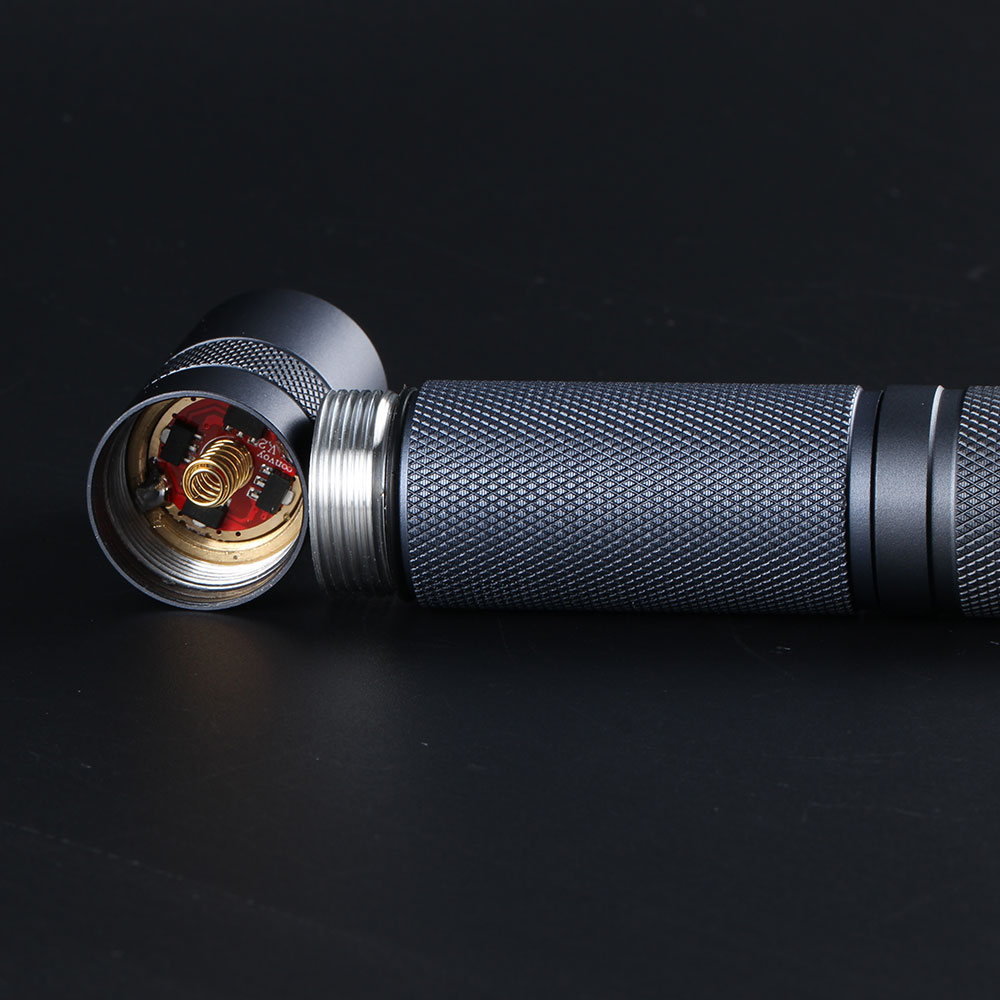

Driver

7135*3 output current 1050mA
7135*4 output current 1400mA
7135*6 output current 2100mA
7135*8 output current 2800mA
the bigger current ,the brighter and hotter flashlight

Mode Instruction:

12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and “tap the switch in the flashing process” means to select the option.)

   Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

       ————-sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

       ————-sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

       ————-sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

       ————-sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

       ————-sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

       ————-sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

       ————-sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

       ————-sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

       ————-sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

       ————-sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

       ————-sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

       ————-sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

   Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

battery-check  instructions:

 <2.95V    1 flash,

2.95-3.25V  2 flashes,

3.25-3.55V  3 flashes,

3.55-3.85V  4 flashes,

>3.85V     5 flashes
