- is_customized: Yes
- Conductor Size: 26-12AWG
- Number of Contacts: 1 – 10
- Model Number: PTTB 2.5
- Type: Spring
- Brand Name: W.DE
- Origin: Mainland China
- Certification: CE,RoHS
- Usage: Distribution Cabinet
- Connect Way: Spring
- Application: Electrical wiring Conductor
- Mount Type: Din Rail
- Cross section solid cable: 0.14-4 mm2
- Cross section soft cable: 0.14-2.5 mm2
- Current: 22A
- Voltage: 500V
- Size L/H/W: 68/47.5/5.2
- Item1: spring terminal block
- Item2: Din Rail Terminal Block Conductor
- Item3: Universal Compact Wire Wiring Connector
- Item4: terminator
- Item5: terminal block
- Item6: screwless terminal block
- Item7: spring connector
- Item8: wire terminal block
- Item9: wire connector block
on
Aliexpress
or
Email:hugh@xuchendq.com
Whatsapp:0086-18367781100
More contact information is at the bottom …
Accessories
(Click the picture to buy)
|
End cover |
Jumpers Bridge
10-5 |
Marker strip
ZBFM5 |
End stop
E-UK |
|
|
|
|
|
|
Marker Carrier
B1/B2 |
Marker Carrier
KLM-A |

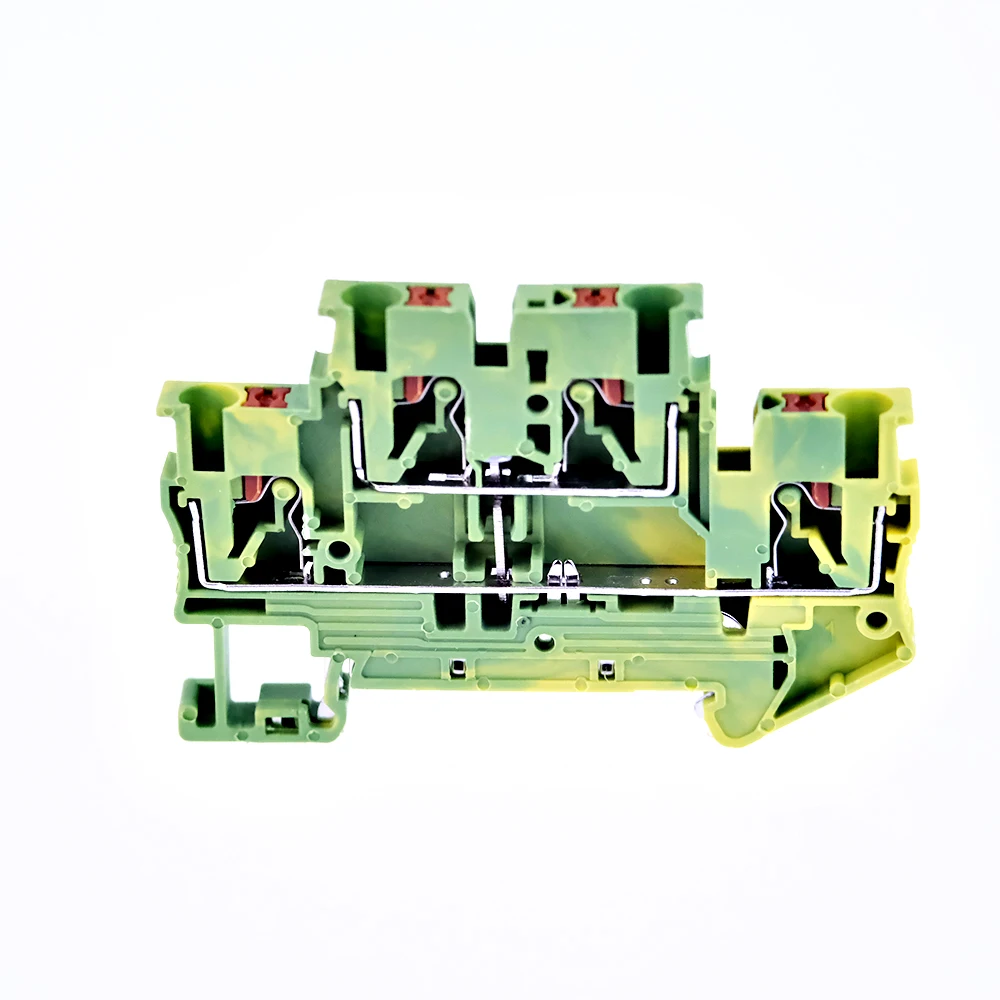

Ground terminal block
PTTB2.5-PE |
Din Rail
|
|
|
|
|
|
Technical Parameters
|
Type No. |
Details |
Accessories |
|
PTTB 2.5 |
500V/22A |
End cover: |
|
Plug-in bridge: |
||
|
Marker strip: |
|
Model Number |
PTTB 2.5 |
|
Color |
Grey, Blue, other color can be customized |
|
Length/Wide/Height (mm) |
68/47.5/5.2 |
|
Connection method |
Spring-cage connection |
|
Material |
Nylon PA66 |
|
Rated Voltage/Current |
500V/22A |
|
Cross section, solid/soft Cable |
0.14-4mm2 / 0.14-2.5 mm2 |
|
Conductor Size |
26-12 AWG |
|
Mounting Type |
NS 35/7.5 |
|
Packing Detail |
10.23g/pc, 50PCS/BOX |
|
Type No. |
Cross section |
Voltage/Current |
Picture |
Click it |
|
UK2.5B |
0.2-4mm²/0.2-2.5mm² |
800V /32A |
|
|
|
ST2.5 |
0.2-4mm²/0.2-2.5mm² |
800V /31A |
|
|
|
PT2.5 |
0.2-4mm²/0.2-2.5mm² |
800V /31A |
|
|
|
PTTB2.5 |
0.14-4mm²/0.14-2.5mm² |
500V /22A |
|
|
|
UK5-HESI |
0.2-4mm²/0.2-4mm² |
800V /6.3A |
|
|
|
DIKD1.5 |
0.2-4mm²/0.2-2.5mm² |
250V /32A |
|
